Lightspeed K Series to Trust Setup

What it does:

This integration allows to pay lightspeed K Series orders with Trust with just a press of a button.

What you need:

• You need the trust site ID and trust site password
• An account with ilglu
  • If you do not have an account please create an account through https://www.ilglu.com/register

Steps to create and activate the integration

1. Connect lightspeed K Series with Ilglu
2. Create integration with ilglu
3. Add web extension to lightspeed

1. Connect lightspeed K Series with Ilglu

How to connect to Lightspeed K Series

2. Create integration with ilglu

1. Login to ilglu (https://www.ilglu.com/login)
2. After logging in you will be redirected to the dashboard (https://www.ilglu.com/dashboard).

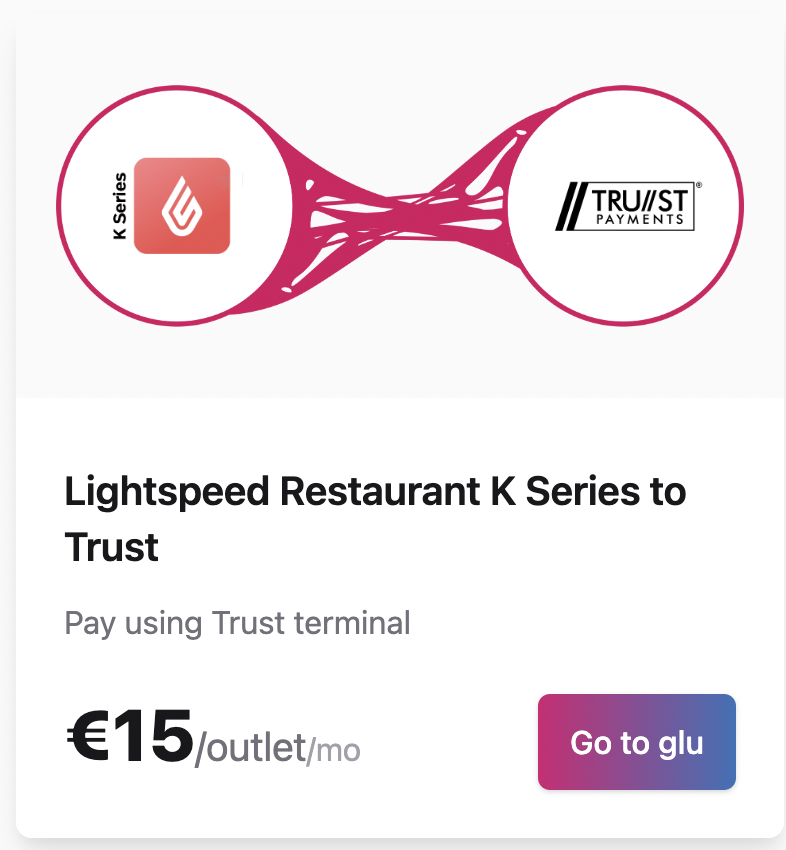

3. Find the Trust integration and press on 'Go to Glu'

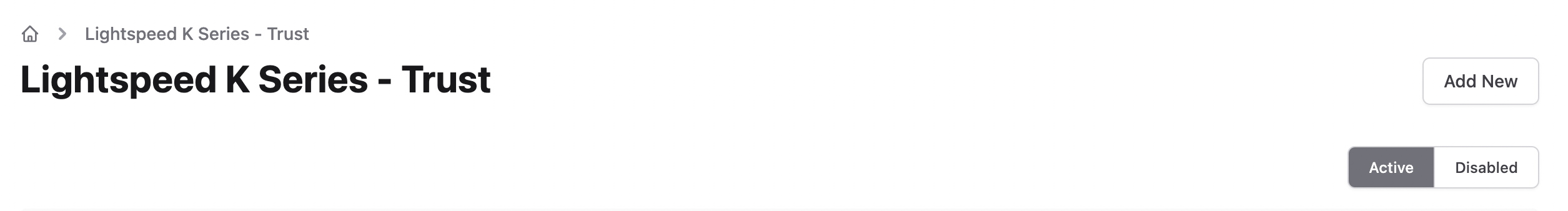

4. To create a new integration press on 'Add New' at the top right.



5. Fill in the integration form as follows (note: All fields are required):
   • Integration Name: any name used to refer to your integration
   • Trust site ID: trust site id - retrieve from trust
   • Trust site password: trust site password - retrieve from trust
   • Payment Method: Lightspeed payment method to be used when referring to trust payments
   • Card Device Pairing (Enter terminal ID): List of trust devices with their serial number
     • Press on add button to add another terminal
     • Device Name: enter easy identifier for your employees to identify the terminal
     • Device Serial Number: enter the device serial number
       • Make sure that trust enabled the devices to be used online
       • Make sure the device is setup correctly
         • Pair device with pos
           https://help.trustpayments.com/hc/en-us/articles/4402276479377-Pairing-POS-for-semi-integrated-mode-with-TRU-Link
         • Handshake the device
           https://help.trustpayments.com/hc/en-us/articles/6092498734097-Handshake-function
         • Connect Wifi with the device

6. Press the 'Save' button to save the integration



7. Press the 'Enable' button to activate the integration and 'Add to my plan' to start subscription



3. Add web extension to lightpseed

Note: the web extension should not have a space as else it will not open the window. Make sure your Lightspeed payment method code does not have spaces

1. Copy the Web Extension link provided on your ilglu integration
2. Go to lightspeed > Configuration > Settings > Web extensions
3. Press of 'Add a new web extensions'
4. Enter any name, paste the link in the URLs field and tick the 'Provide a JavaScript context to the page to load' option.
5. Register the web extension
6. Go to Menu management > menus > select the menu to add the web extension
7. Select the main screen where the web extension button will be added
8. Press of 'Add a button' and choose 'Web extensions'
9. Find the extension you created and add the button
10. Refresh the back office from the ipad and the setup is complete

To pay using trust from your lightspeed ipad find the button added. Press on the button. If you have more than one device select the device to be used and submit for payment

Example link:

Congratulations! You have completed your Lightspeed K Series to Trust integration.
