Lightspeed K Series to Cashmatic Setup

This integration allows to pay lightspeed K Series using cashmatic device with just a press of a button. This reduces money within the hands of your employees and all in your hands.

What you need:

• An account with ilglu
  • If you do not have an account please create an account through https://www.ilglu.com/register
• Cashmatic IP address - this needs to be setup as DHCP and the IP address should be linked with the machine from the router.
• Cashmatic username
• Cashmatic password
• Certificate from Cashmatic - the certificate is provided after the machine is installed
  • You need to provide your cashmatic contact with your device IP address, VPN and serial number

Steps to create and activate the integration

1. Connect lightspeed K Series with Ilglu
2. Create integration with ilglu
3. Add web extension to lightspeed and install the certificate

1. Connect lightspeed K Series with Ilglu

How to connect to Lightspeed K Series

2. Create integration with ilglu

1. Login to ilglu (https://www.ilglu.com/login)
2. After logging in you will be redirected to the dashboard (https://www.ilglu.com/dashboard).

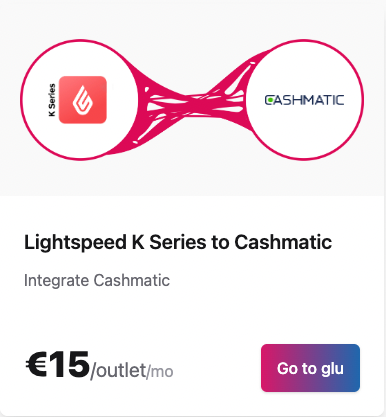

3. Find the  integration and press on 'Go to Glu'

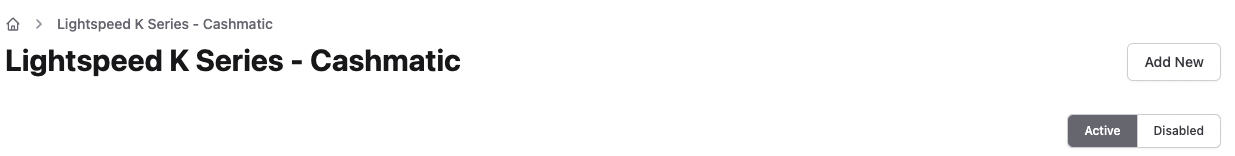

4. To create a new integration press on 'Add New' at the top right.



5. Fill in the integration form as follows (note: All fields are required):
   • Integration Name: any name used to refer to your integration
   • Payment Method: Lightspeed payment method to be used when referring to cashmatic payments
   • Device Pairing (Enter terminal ID): List of cashmatic devices with their IP address, username, password and pin
     • Press on add button to add another terminal
     • Device Name: enter easy identifier for your employees to identify the terminal
     • Device IP Address: enter the cashmatic IP address. Can be retrieved from the webportal provided to you when given the cashmatic
     • Username: username used to login to cashmatic
     • Password: password used to login to cashmatic
     • Device Pin: pin that will be used for admin access only

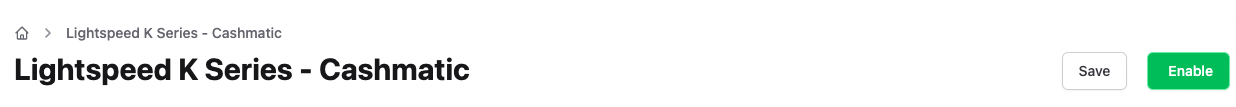

6. Press the 'Save' button to save the integration

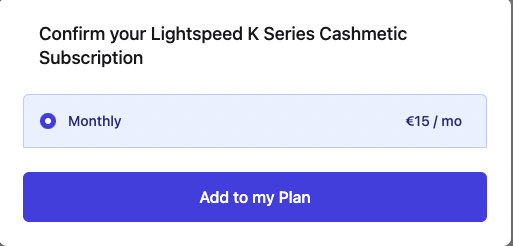

7. Press the 'Enable' button to activate the integration and 'Add to my plan' to start subscription



3. Add web extension to lightpseed and install the certificate

Note: the web extension should not have a space as else it will not open the window. Make sure your Lightspeed payment method code does not have spaces

1. Copy the Web Extension link provided on your ilglu integration
2. Go to lightspeed > Configuration > Settings > Web extensions
3. Press of 'Add a new web extensions'
4. Enter any name, paste the link in the URLs field and tick the 'Provide a JavaScript context to the page to load' option.
5. Register the web extension
6. Go to Menu management > menus > select the menu to add the web extension
7. Select the main screen where the web extension button will be added
8. Press of 'Add a button' and choose 'Web extensions'
9. Find the extension you created and add the button
10. If you want to use the admin web extension provided, do the same steps as above with the admin link.
11. Install certificate
    • Follow the steps from https://drive.google.com/file/d/1oDg_SbMF5uIP5oY_vjr__mVqAUI82wjL/view?usp=sharing
12. Refresh the back office from the ipad or lightspeed backoffice

To pay using cashmatic from your lightspeed ipad find the button added. Press on the button. If you have more than one device select the device to be used and submit for payment

Example link:

Congratulations! You have completed your Lightspeed K Series to Cashmatic integration.
